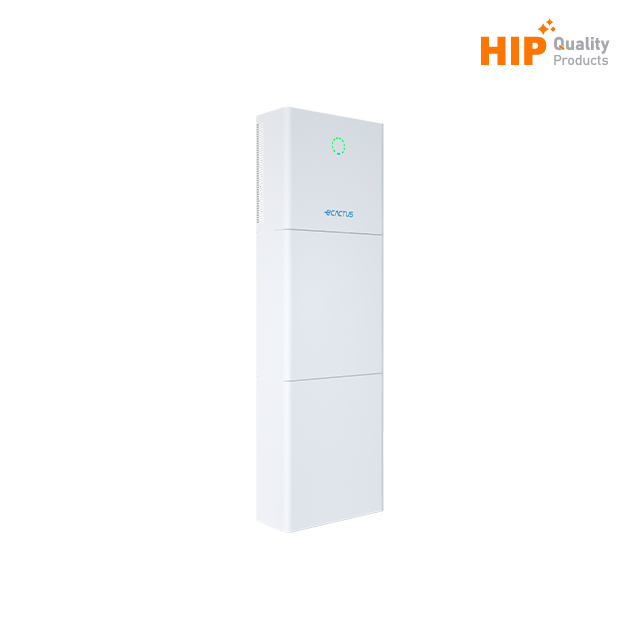

ecactus Inverter all in one 6kw 10kwh

ecactus Inverter all in one 6kw 10kwh

รหัสสินค้า :

all in one 6kw 10kwh

ecactus Inverter all in one 6kw 10kwh Agave is a hybrid All In One battery energy storage system designed for the future. The extreme performance, smart design and compact installation will help you achieve
greater power independence! Agave enables a smarter and greener way of living.

  • Convenient Heat simulation for the bestlayout
  • Quiet Less than 25 dB, minimal noise pollution
  • Flexible IP65 inverter up to 6kW, battery 5 or 10kWh
  • Adaptative Self-power, backup, and load shifting modes
  • Independent No additional modules and inverters are required
  • Smart Support VPP and AIOT (Artificial Intelligence of Things)

HIP Logo PDF

หมวดหมู่สินค้า :

,

(ขอสงวนสิทธิ์ในการเปลี่ยนแปลงรายละเอียดโดยไม่ต้องแจ้งให้ทราบส่วงหน้า บริษัท เอช ไอ พี โกลบอล จำกัด)

Model WH-SPHA6.0H-5.12kWh
WH-SPHA6.0H-10.24kWh
PV Input
Absolute max Voltage (d.c.V) 8000
MPPT Voltage Range (d.c.V)
Max. DC Input Power (W)
Start-up Voltage (d.c.V)
Rated Operating Voltage (d.c.V)
Rated Operating Voltage
Max. Input Current (d.c.A) 12.5/12.5
Max. inverter backfeed current to array (d.c.A)
Isc PV (d.c.A)
NO.of MPPT Trackers
NO.of Strings per MPPT Tracker
Battery Capacity WH-BXB10.24
Nominal Battery Voltage (d.c.V) 409.6
Battery Voltage Range (d.c.V) 320...454.4
Max. Charge/Discharge Current (d.c.A)
Cycling times
AC Input/Output
Rated output Power (W) 6000
Max. Apparent Power from Grid [V
Rated Apparent Power to Grid (VA)
Max. Apparent Power from Grid (VA) 1200
Rated Frequency [Hz]
Rated AC Current to G
Rated AC Current to Grid (a.c.V) 26.1
Max. Current from Grid (a.c.A)
Max. Current from Grid (a.c.A)
Inrush current (a.c.A)
AC output Maximum output ove
AC output Maximum output overcurrent protection (a.c.A)
AC output power factor
AC output power factor
THDi

Rated Apparent Power (VA)7200

Rated Apparent Power (W) 6000
Max. Apparent Power (VA) 7200
Norminal Frequency [Hz]
Max. Output Current (a.c.A) 16 a.c.A (peak), 11.3 us (duration)
EPS output Maximum output ov 57 (peak), 40 (rms)
EPS output Maximum output overcurrent protection (a.c.A) 40
Switch time (ms) < 10
THDv @Linear Load (%) 2
Power Factor -0.8...+0.8
Efficiency
PV Europe Efficiency (%) 97.6
PV Europe Efficiency (%) 97
PV Max. MPPT Efficiency (%) 99.9
Battery Charge by PV Max. Efficiency (%) 98
Battery Discharge Efficiency (%) 96.7
Protection
Over/Under voltage protection Yes
DC isolation protection
DC injection monitorin
Residual current detect
Anti-islanding protection
Battery input reverse polarity protection
PV reverse polarity protection
Surge protection
Over heat protection
General Data WH-BXB10.24
Dimension (W/D/H)(mm) 550*233*1750
Dimension of Packing (W/D/H)(mm) 655*302*2085
Net weight (kg) 115
Gross weight (kg) 130
Operation Temp (*C) -10...+55
Relative Humidity (%) 0...95
Altitude (m) ≤ 3000
Ingress Protection IP65
Cooling Natural
Inverter Topology Non-isolated
Over voltage category Ⅲ(AC), Ⅱ(DC)
Protective class Class I
Active anti-islanding method frequency shift
Human Interface LED/APP
BMS Communication Interface RS485/CAN
Meter Communication Interface RS485
Noise Emission (dB) < 25
Standby Power Consumption (W) < 5
Safety IEC62040.1:2019 IEC 62109-1&-2
IEC62619 UN38.3 IEC60730-1 G99
EMC EN IEC 61000-6-2:2019 EN IEC 61000-6-3:2021
Country AS/NZS 4777.2:2020 VDE-AR-N 4105:2018-11 MEA:2015 PEA:2016 EN 50549-2:2019 EN 50549-1+Poland deviation G99/1-6:2020 G98/1-6:2021 RD1699+UNE Distribution Code
VDE0126+UTE C10/11: 2021
