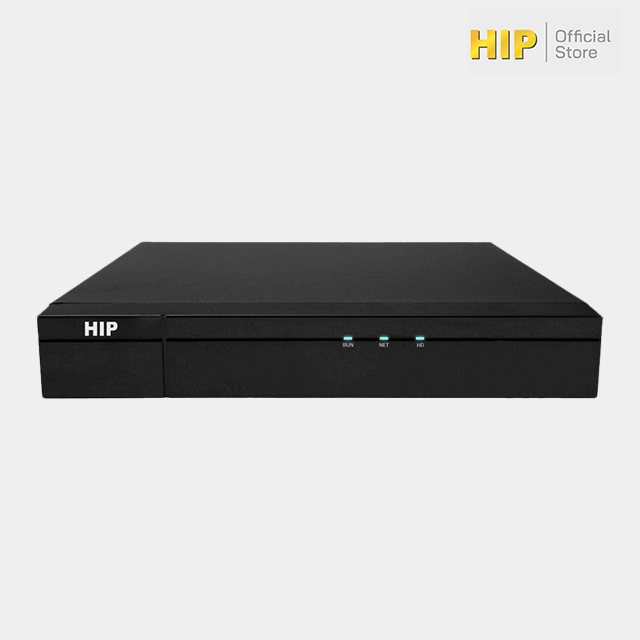

HIP NVR 32 Channel รุ่น CMU3132-H2 is a high-performance network video recorder designed to meet the needs of modern surveillance systems. Supporting Ultra265, H.265, and H.264 video formats, it features 32-channel input, making it compatible with a wide range of third-party IP cameras via ONVIF profiles (S, G, T). This device provides simultaneous HDMI and VGA output, supports up to 8 Megapixels recording resolution, and ensures smooth, accurate retrieval and instant playback. With a capacity for two SATA HDDs, each supporting up to 10TB, and ANR technology, it ensures reliable storage even when the network is interrupted. The NVR also supports advanced features like face detection, behavior analysis, and cloud upgrades, making it an ideal choice for robust and scalable video surveillance solutions.
| Model |
NVR CMU3132-H2 |
| Video/Audio Input |
| IP Video Input |
32-ch |
| Two-way Audio Input |
1-ch, RCA |
| Network |
| Incoming bandwidth |
160Mbps |
| Outgoing bandwidth |
64Mbps |
| Remote Users |
128 |
| Protocols |
P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, SMTP, NTP, SNMP, RTSP, IPv4, IPv6, ONVIF |
| Video/Audio Output |
| HDMI/VGA Output |
HDMI: 4K (3840×2160) @30, 1920×1080@60, 1920×1080@50, 1600×1200@60,
1280×1024@60, 1280×720@60, 1024×768@60
VGA: 1920×1080@60, 1920×1080@50, 1280×1024@60, 1280×720@60, 1024×768@60
|
| Audio Output |
1-ch, RCA |
| Recording Resolution |
8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF |
| Synchronous Playback |
4-ch |
| Corridor Mode Screen |
3/4/5/7/9/10/12/16/32 |
| Decoding |
| Decoding format |
Ultra265/H.265/H.264 |
| Live view/Playback |
8MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability |
2 × 4K@30, 3 × 5MP@30, 4 × 4MP@30, 5 × 3MP@30, 8 × 1080p@30, 16 × 720p@30
|
| Hard Disk |
| SATA |
2 SATA interfaces |
| Capacity |
up to 10TB for each disk (environment temperature should be below 30°C) |
| Smart |
| VCA Detection |
Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking |
| VCA Search |
Face search, Behavior search |
| Statistical Analysis |
People counting |
| External Interface |
| Network Interface |
1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interfaces |
| USB Interface |
Rear panel: USB × 2 |
| General |
| Power Supply |
12V DC |
| Power Consumption |
< 15W (without HDD) |
| Working Environment |
-10°C ~ +55°C (+14°F ~ +131°F), Humidity ≤ 90% RH(non-condensing) |
| Dimensions (W×D×H) |
380mm × 318mm ×45mm |
| Weight (without HDD) |
≈ 3.15 kg (6.94 lb) |
