Longi Solar HI-MO5 LR5-72HPH-545M

Longi Solar HI-MO5 LR5-72HPH-545M

รหัสสินค้า :

LR5-72HPH-545M

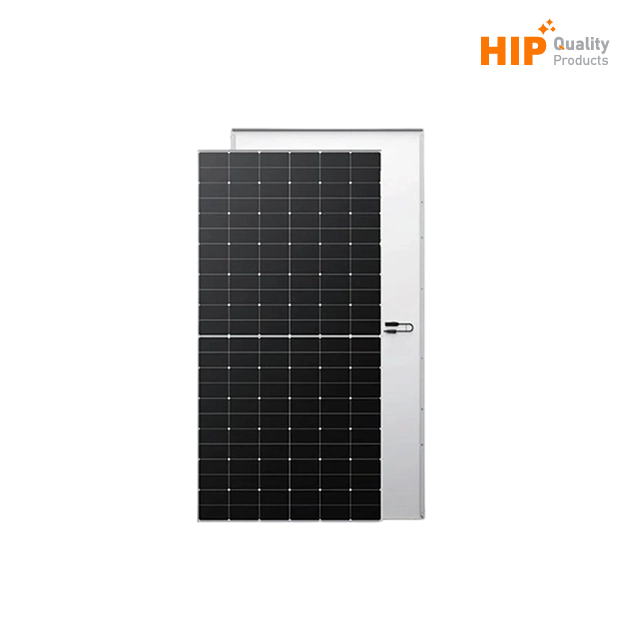

Longi Solar HI-MO5 LR5-72HPH-545M solar panel is a monocrystalline module with 545W output and 144 cells (6x24) from Longi, one of the leading manufacturers in the global photovoltaic industry.

Panel dimensions: Length 2256mm, Width 1133mm, Height 35mm, Weight 27.2kg/p>

  • Based on M10 wafer, best choice for ultra-large power plants
  • Advanced module technology delivers superior module efficiency
  • Excellent outdoor power generation performance
  • High module quality ensures long-term reliability
  • 12-year Warranty for Materials and Processing
  • 25-year Warranty for Extra Linear Power Output

HIP Logo PDF

หมวดหมู่สินค้า :

, ,

(ขอสงวนสิทธิ์ในการเปลี่ยนแปลงรายละเอียดโดยไม่ต้องแจ้งให้ทราบส่วงหน้า บริษัท เอช ไอ พี โกลบอล จำกัด)

Longi Solar HI-MO5 LR5-72HPH-545M solar panel from Longi is ideal for self-consumption and industrial solar installations. These modules offer high quality and durability, manufactured with monocrystalline silicon and an anodized aluminum frame.

Longi Solar Panels

  • Module Type: LR5-72HPH-545M
  • Cell: Half Cell, Mono Crystalline
  • No. of Cells: 144(6×24)
  • Glass: Single glass, 3.2mm coated tempered glass
  • Junction Box: IP68, three diodes
  • Connector: MC4

Electrical Parameters at STC

  • Maximum Power(Pmax/w) : 545W
  • Voltage at Maximum Power (Vmp/V) : 41.80VDC
  • Current at Maximum Power (Imp/A) : 13.04A
  • Open Circuit Voltage(Voc/V) : 49.65VDC
  • Short Circuit Current(Isc/A) : 13.92A
  • Module Efficiency : 21.1%

Operating Parameters

  • Maximum System Voltage : DC1500V(IEC/UL)
  • Maximum Series Fuse Rating : 25A
  • Operating Temperature : -40°C to 85°C

Product Certifications

  • IEC 61215
  • IEC 61730
  • UL 61730
