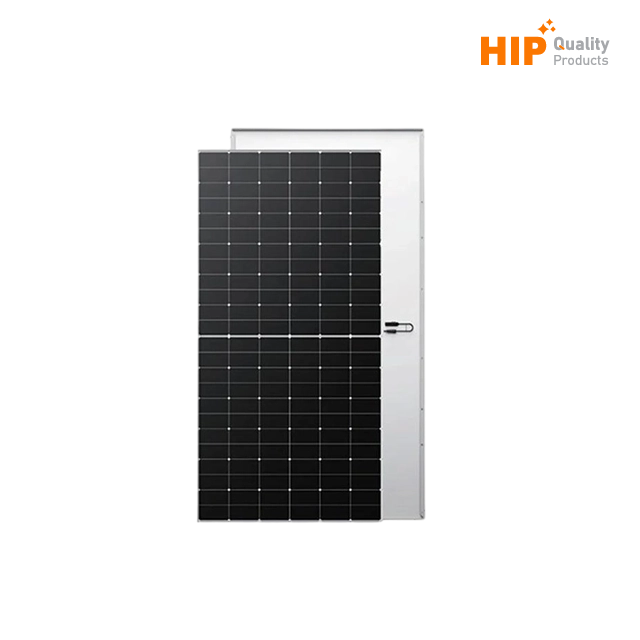

Longi Solar HI-MO6 LR5-72HTH-580M

Longi Solar HI-MO6 LR5-72HTH-580M

รหัสสินค้า :

LR5-72HTH-580M

Longi Solar HI-MO6 LR5-72HTH-580M monosrystalline photovolatic module with maximum output power of 580w, and maximum power warrenty of 88.90% after 25 years comes with the features of Simple design embodies modern style, Better energy generation performance, Suitable for distribution market, High quality module guarantee long term reliabilty, 15 years of product warranty

  • Power Output: 580W
  • Efficiency: 22.5%
  • Cell Technology: Monocrystalline HPBC cells
  • Module Dimensions: 2278 mm (L) x 1134 mm (W) x 35 mm (H)

HIP Logo PDF

หมวดหมู่สินค้า :

, ,

(ขอสงวนสิทธิ์ในการเปลี่ยนแปลงรายละเอียดโดยไม่ต้องแจ้งให้ทราบส่วงหน้า บริษัท เอช ไอ พี โกลบอล จำกัด)

Longi Solar HI-MO6 LR5-72HTH-580M PV module represents a significant advancement in solar technology, blending high efficiency with robust durability. Designed by LONGi Solar, a leader in the solar industry, this module leverages HPBC (High Performance Back Contact) cell technology to deliver an impressive efficiency rate of 22.5%. This state-of-the-art technology ensures superior energy conversion, making the most of limited space, and providing optimal power output. The sleek silver frame not only enhances the module’s aesthetic appeal but also offers robust protection against environmental challenges.

Model LR5-72HTH-580M
ELECTRICAL PARAMETERS
Maximum Power (Pmax/W) 580W
Maximum Power Voltage (Vmpp/V) 43.76 V
Maximum Power Current (Impp/A) 13.03 A
Open-Circuit Voltage (Voc/V) 52.21 V
Short-Circuit Current (Isc/A) 14.20 A
Module Efficiency (%) 22.5%
NOCT 45ºC±2ºC
Values at Standard Test Conditions STC (AM 1.5, Irradiance 1,000 W/m2, Cell Temperature 25ºC)
SPECIFICATIONS
Cell Type Mono-Crystalline
Number of cells 144 [6X24]
Weight 27.5 kg
Dimensions 2278 x 1134 x 35 mm
Cable cross section size 4 mm², 1400 mm
Junction Box IP68, Three Diodes.
