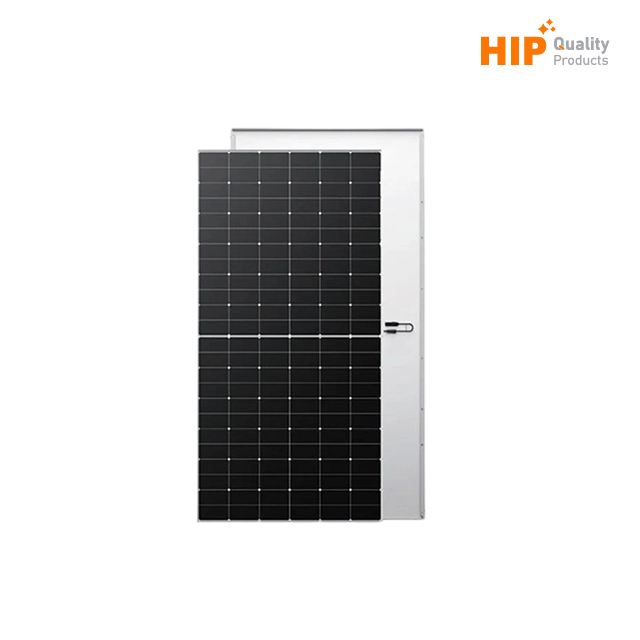

Longi Solar MONO LR4-72HBD-435W

รหัสสินค้า :

LR4-72HBD-435W

Longi Solar Mono LR4-72HBD-445M The LONGi module combines High Efficiency, Low LID Mono PERC cells with Half-cut Multi-Busbar Technology to improve performance and boost production. This module series has a max system voltage of 1500V and is Fire Rated as Class C (per UL790). 35mm frames reduce weight while still providing the strength and resilience needed to rate 5400Pa for front side static loading and 2400Pa for rear side static loading/p>

  • Suitable for ground power plants and distributed projects
  • Advanced module technology delivers superior module efficiency
  • Excellent outdoor power generation performance
  • High module quality ensures long-term reliability

HIP Logo PDF

หมวดหมู่สินค้า :

(ขอสงวนสิทธิ์ในการเปลี่ยนแปลงรายละเอียดโดยไม่ต้องแจ้งให้ทราบส่วงหน้า บริษัท เอช ไอ พี โกลบอล จำกัด)

Model LR4-72HBD-435M
Technology Bifacial Monocrystalline (Mono)
Dimensions 82.44 x 40.87 x 1.38 inches
Weight 60.63 lbs
Cell Orientation: 144 Half Cells (6x24) - 72 Cell Module
Junction Box: IP68, Three Diodes
Maximum Power (Pmax/W) 435 Watts
Open Circuit Voltage (Voc/V) 49.1 Volts
Short Circuit Current (Isc/A) 11.36 Amps
Voltage at Maximum Power (Vmp/V) 40.8 Volts
Current Maximum Power (Imp/A) 10.66 Amps
Module Efficiency 20%
