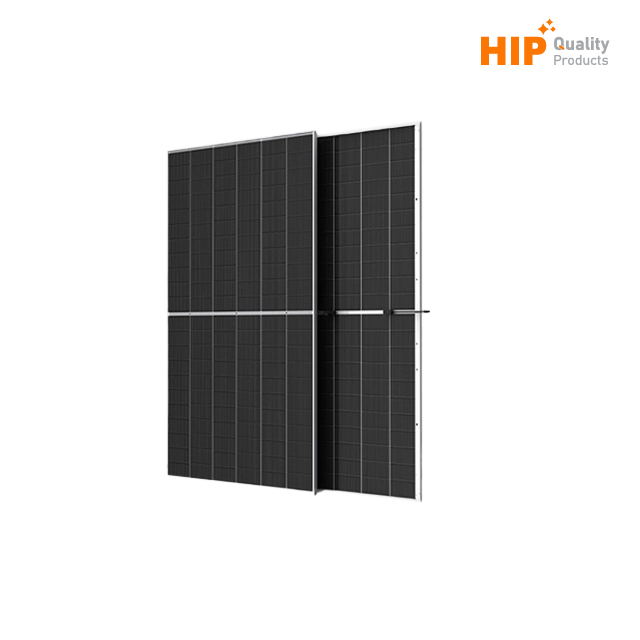

Trina Solar Module N Type 700W

Trina Solar Module N Type 700W

รหัสสินค้า :

TRINA 700 N Type

Trina Solar Module N Type 700W High-efficiency solar module with excellent LCOE, power output, and durability. This innovative module features N-type i-TOPCon technology, high-density interconnect, and SMBB for superior performance. It offers up to 700W of power, 22.5% efficiency, and exceptional reliability in harsh environments. Ideal for maximizing energy production with minimal maintenance.

HIP Logo PDF

หมวดหมู่สินค้า :

, ,

(ขอสงวนสิทธิ์ในการเปลี่ยนแปลงรายละเอียดโดยไม่ต้องแจ้งให้ทราบส่วงหน้า บริษัท เอช ไอ พี โกลบอล จำกัด)

  • High customer value
    • The star of LCOE (Levelized Cost Of Energy)Higher string power feature effectively reduces BOS (Balance of System) and LCOE.
    • More energy harvest with cutting-edge N-typei-TOPCon technology,
    • Designed for compatibility with existing mainstreamsystem components.
  • High power up to 700W
    • Up to 22.5% module efficiency with high density interconnect technology;
    • SMBB (Super multi-busbar) technology for better light trapping effect, lower series resistance and improved current collection.
  • High reliability
    • Minimized micro-cracks with innovative non-destructive cutting technology.
    • Ensured PlD resistance through cell process and module material control.
    • · Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas.
    • Mechanical performance up to 5400 Pa positive load and2400Pa negative load.
  • High energy yield
    • Excellent lAM (incident Angle Modifier) and low irradiation performance, validated by 3rd party certifications,
    • The unique design provides optimized energy production under inter-row shading conditions.
    • Lower temperature coefficient (-0.34%) and operating temperature,
    • Up to 30% additional power gain from back side depending on albedo.
Model 675 W 680 W 685 W 690 W 695 W 700 W
พิกัดความเผื่อกำลัง (W) 0~+5
แรงดันไฟฟ้าสูงสุด (V) 39.5 39.6 39.8 40.1 40.3 40.5
กระแสไฟสูงสุด (A) 17.12 17.16 17.19 17.23 17.25 17.29
แรงดันไฟวงจรเปิด (V) 47.2 47.4 47.7 47.9 48.3 48.6
กระแสไฟฟ้าลัดวงจร (A) 18.14 18.18 18.21 18.25 18.28 18.32
ประสิทธิภาพของโมดูล (%) 21.7 21.9 22.1 22.2 22.4 22.5
